Industrial product category
UV Inkjet Printers
High-resolution, non-contact UV coding for variable text, barcodes, QR codes, graphics, and traceability data on varied industrial materials.
Exact models, availability, and technical specifications are confirmed in the quotation.
Product overview
UV Inkjet Printers for industrial applications

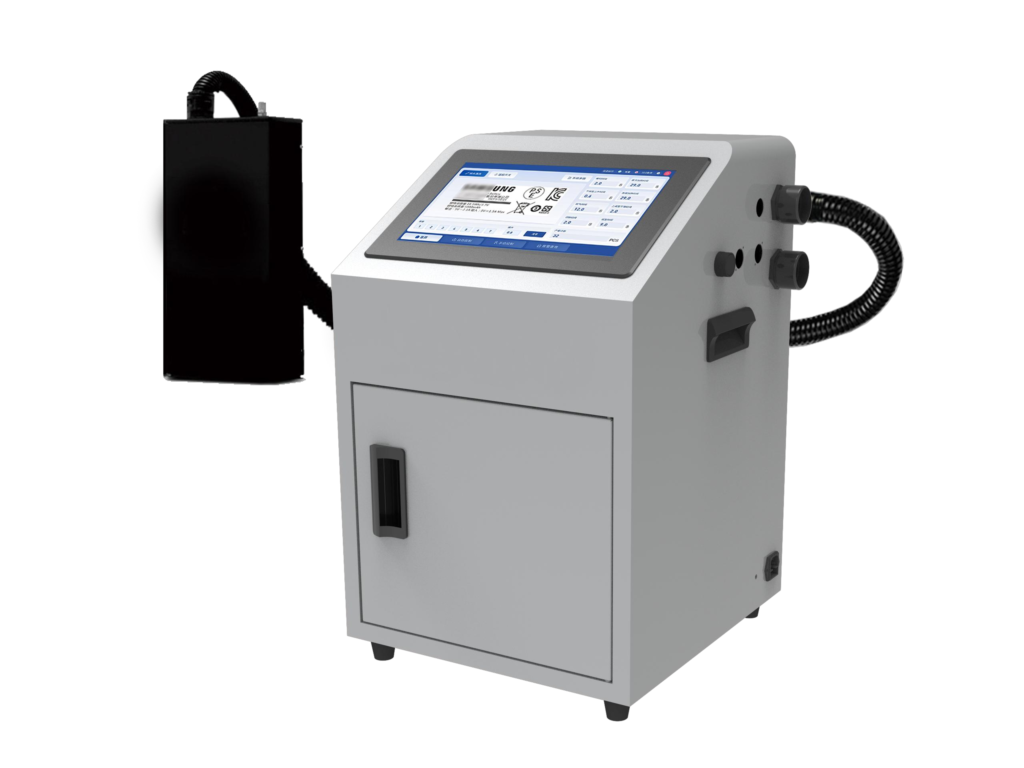

The WF-L500-M is an industrial UV inkjet coding system built around a piezoelectric printhead and negative-pressure ink supply. The supplier brochure lists a 54 mm print width, 600 dpi physical resolution, 7-35 pL variable droplets, and single or continuous printing at speeds from 0 to 120 metres per minute. Actual production speed depends on the message, resolution, substrate, ink, curing arrangement, and line conditions.
Its non-contact printhead can be mounted for printing in different directions and is intended for suitable paper, plastic, metal, glass, wood, ceramic, leather, corrugated board, moulded parts, panels, fabric, and rubber surfaces. UV ink, lamp, adhesion, curing, contrast, and durability must be validated using representative samples before purchase.
A 13.3-inch industrial touchscreen provides message setup, while Ethernet, USB, RS232, encoder, trigger, and curing-lamp interfaces support line integration. The system also supports fixed and variable text, images, codes, database printing, and connection workflows for ERP or MES environments, subject to project confirmation.
Available range
Models or product types
The exact range depends on the confirmed application and current availability.
Main features
Configured around the task
- 54 mm maximum print width with 600 dpi physical resolution
- Industrial piezoelectric printhead with 7-35 pL variable droplets
- Single or continuous, non-contact printing in flexible mounting directions
- Manufacturer-listed print speed range of 0-120 metres per minute
- 13.3-inch industrial touchscreen with Windows 10-based operation
- Ethernet, USB, RS232, curing-lamp, encoder, and trigger interfaces
- Negative-pressure ink supply with circulation, low-level warning, ink purge, and automatic cleaning
- Fixed and variable messages, database printing, and ERP or MES integration support
- IP54 protection rating and a stated operating range of 0-40 degrees Celsius
Customer benefits
A practical operational outcome
- High-resolution variable coding without printing plates
- Suitable for short batches and frequent message changes
- Non-contact printing across a broad range of compatible industrial materials
- UV-curable ink workflow for rapid curing when correctly matched to the application
- Automated production-line integration using sensors, encoders, databases, ERP, or MES
- Integrated ink management supports consistent operation and planned maintenance
Applications
Where this category is commonly used
Production and expiry datesBatch and lot numbersSerial numbersBarcodes and QR codesPharmaceutical traceability codesLogos, graphics, and fixed textVariable database informationPackaging, label, cap, carton, and component codingProduction-line product identification and traceability
Suitable industries
Manufacturing environments served
Food and BeveragePharmaceuticalCosmeticsElectronicsLogistics and WarehousingAutomotive PartsBuilding MaterialsTextiles and ApparelLabels and PackagingGeneral Manufacturing
Technical specifications
Confirm the specification before purchase
Specifications depend on the selected model and application. We confirm verified information from the manufacturer or supplier datasheet before quotation.
Editable specification area
Model: WF-L500-M
Printhead: industrial piezoelectric printhead
Drop size: 7-35 pL variable droplets
Maximum print width: 54 mm
Physical resolution: 600 dpi
Printing direction: 360-degree installation flexibility
Printing mode: single or continuous
Listed print speed: 0-120 m/min
Print distance: 0-5 mm; recommended 0-3 mm
Content: fixed and variable text, images, codes, and database fields
Software: WFZN
Operating system: Windows 10
Interfaces: Ethernet, USB, RS232, curing lamp, encoder, and trigger
Display: 13.3-inch industrial touchscreen
Power: AC 220 V / 50 Hz
Protection rating: IP54
Operating environment: 0-40 degrees Celsius; 20%-80% relative humidity
Final speed, ink, UV curing, adhesion, and material compatibility require application testing.
Product gallery
Application and equipment imagery
Representative product and line-integration images. Final equipment appearance and installation arrangement depend on the selected model and production line.
Frequently asked questions
Questions about UV Inkjet Printers
These answers are general guidance. The formal quotation and confirmed datasheet take precedence.
Which materials can the WF-L500-M print?
The brochure lists paper, plastic, metal, glass, wood, ceramics, leather, corrugated board, moulded parts, panels, fabric, and rubber. Ink adhesion and UV curing must be tested on the actual surface.
What can the UV inkjet printer code?
It can produce fixed and variable text, numbers, barcodes, QR codes, pharmaceutical traceability codes, graphics, logos, serial numbers, production dates, batch numbers, and expiry dates.
Can it connect to a production database?
The system supports database printing and communication workflows for ERP or MES integration. The exact data source, protocol, message format, and line controls must be reviewed before quotation.
Can it run at 120 metres per minute?
The supplier lists a range up to 120 m/min. Achievable speed depends on print content, resolution, substrate, ink, curing, product spacing, encoder setup, and production conditions.
Is sample testing required?
Yes. Representative substrate testing is recommended to confirm ink adhesion, curing, contrast, code quality, durability, and the correct installation distance.
